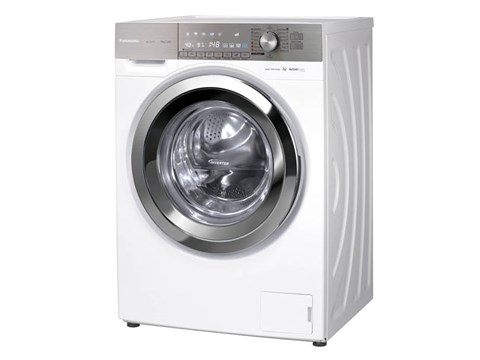

NA-120VX7

ECONAVI Front Loading Washing Machine (10kg, 1200 rpm)
Suggested Retail Price HK$6,980

Product | Accessories

Highlights

  • Pioneering Blue Ag+ technology, combining Ag ions and UV light to eliminate 99.99% viruses and bacterium
  • ActiveFoam system makes finer bubble which penetrates deep into fabrics and achieve superb wash results
  • StainMaster+ technology efficiently removes mud, oil stains and collar and sleeves
  • ECONAVI technology automatically detects loading amount and water temperature,and selects the most suitable washing time and water consumption,effectively saves energy.
  • Embedded multi-function LED display

Features

  • Washing Capacity : 10kg
  • Spin speed:500-1200(rpm)
  • Pioneering Blue Ag+technology, combining Ag ions and UV light to eliminate 99.99% viruses and bacterium*
  • New ActiveFoam system makes finer bubble which penetrates deep into fabrics and achieve superb wash results
  • New Active Speed programme shortens the washing time to 49 mins #
  • New StainMaster+ technology efficiently removes mud, oil stains and collar and sleeves
  • ECONAVI technology automatically detects loading amount and water temperature, and selects the most suitable washing time and water consumption, effectively saves energy
  • Inverter drive motor achieves quiet operation
  • Sazanami drum features an interior with dimple-shaped water spots, ideal for thoroughly removing dirt while reducing damage on clothes
  • Silent arch body design effectively absorbs noise and vibration
  • 3D sensor wash
  • Embedded multi-function LED display
  • Water temperature from cold water to 90℃
  • Timer : 24 hours
  • Child lock
  • Fully Automatic Washing Machine with 16 Programs to Choose
  • (i)Cotton (ii) Active Speed (iii) Cotton Eco (iv) Synthetic; (v) Delicates; (vi) Soak; (vii) Mixed;(viii) Bedding; (ix) Tub Clean; (x) Collar & Sleeve; (xi) Oily Sauce (xii) Mud; (xiii) Raped 15; (xiv) Quick 30; (xv) Hygience; (xvi) ECONAVI
  • Grade 1 Energy Efficiency Label
  • Grand 1 Water Efficiency Label
  • Colour : White
  • Drain pump
  • Body Dimension:W596 x D560 x H845(mm)
  • Depth (Including Door, Button and Water Supply/Drain Hose) : 570 (mm)
  • Slim top plate model not available
  • 2 year warranty
  • Country of origin : China
  • Safety Tips for Washing Machine :

    https://www.emsd.gov.hk/filemanager/tc/content_442/Poster_WM.pdf

* Up to 3 kg load ; testing laboratory : China Testing & Inspection Institute for Household Electric Appliances; testing condition : cotton (cold wash) and Ag+

# Up to 5 kg load

Bacteria Removal Using a Cold Water Wash

Blue Ag+ removes 99.99%*1 of bacteria from laundry with cold water. This innovative hygiene technology combines silver (Ag) ions and UV light to eliminate bacteria. The entire system not only saves electricity but also washes most clothes with less color fading and shrinkage.

Snow

Safe & Reliable Hygiene Care

Dr. Hiroki Kourai, advisor to the Society for Antibacterial and Antifungal Agents in Japan, shares his insights into the effectiveness, safety and convenience offered by Blue Ag+ to help mothers manage their everyday laundry chores.


LEARN MORE

60/90°C Allergy Care

Select the Hygiene 60°C/90°C*4 program to keep laundry extra hygienic by removing bacteria and common household allergens that irritate sensitive skin.

No More Pre-care & Hand Wash

StainMaster+ provides three types of intensive stain removal courses with the touch of a button. The Collar & Sleeves, Oily Stains and Mud courses are designed to effectively remove each type of stubborn stain by soaking clothes in a 40°C warm detergent solution before running the optimal washing sequence.

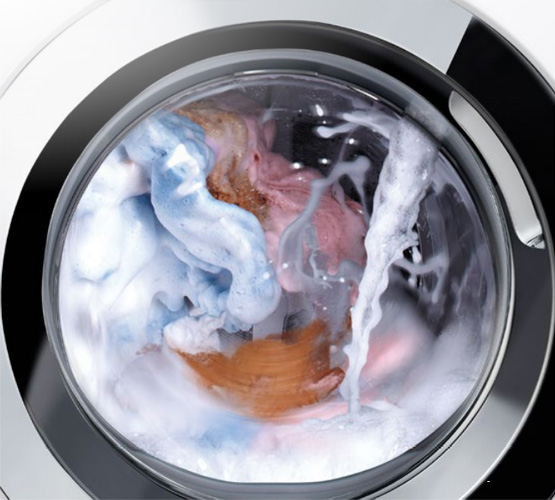

Lift Stains Away with Fine Foam

The ActiveFoam System produces a fine, high-density foam before the washing cycle starts to lift, separate and remove dirt from deep in fabric fibers.

Snow

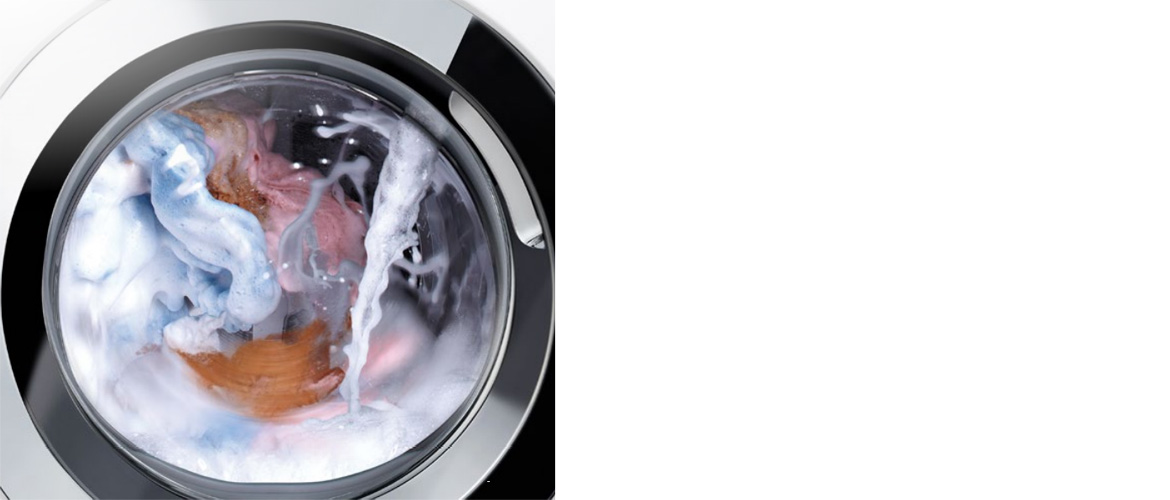

49-minute Fast Wash*5

The Active Speed Wash delivers optimum washing performance in just 49 minutes*5 with fine, high-density foam. This program saves you time doing laundry to give you more for the important things in life.

Snow

Optimal Tumble for Ideal Washing

The 3D Sensor detects unbalanced clothes and adjusts the tub rotation speed accordingly to ensure optimal tumbling throughout the wash cycle.

Snow

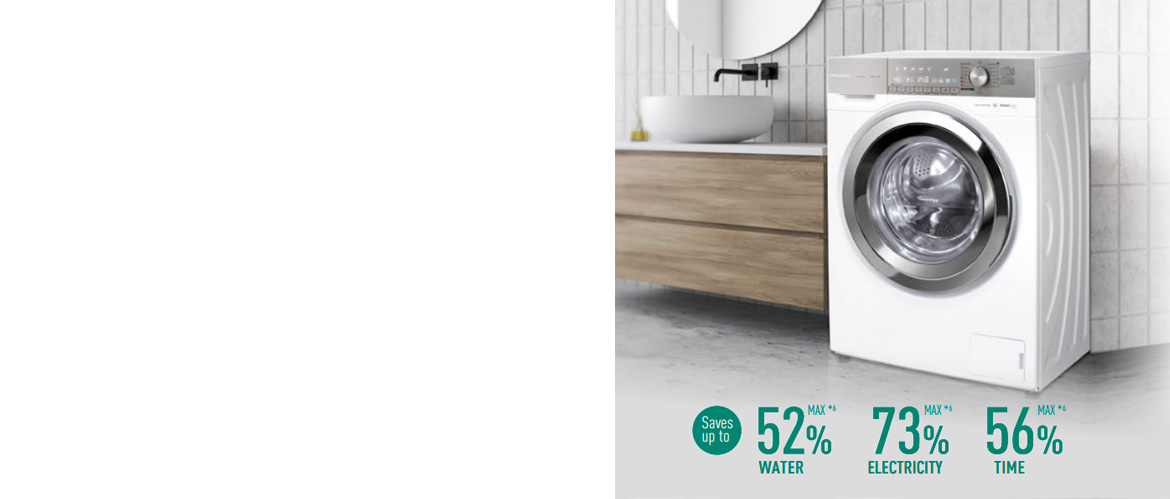

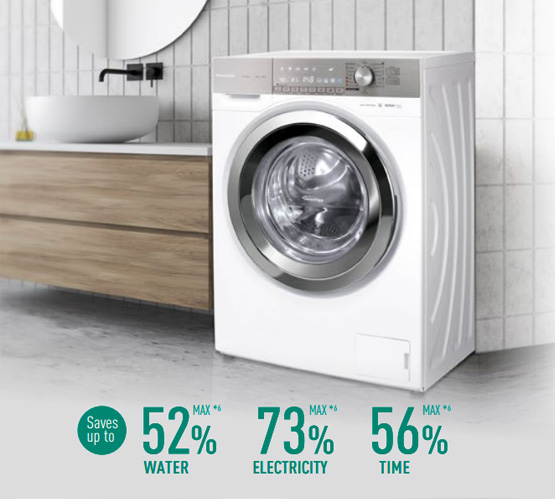

Automatic Energy, Water, and Time Savings

ECONAVI automatically optimizes operation according to the water temperature, size of the load, and fabric material to enhance savings across the board by eliminating wasteful use of energy, water and time.

Snow

Super Quiet and Energy Efficient

The advanced Inverter technology lowers noise while offering superb energy savings during operation.

Snow

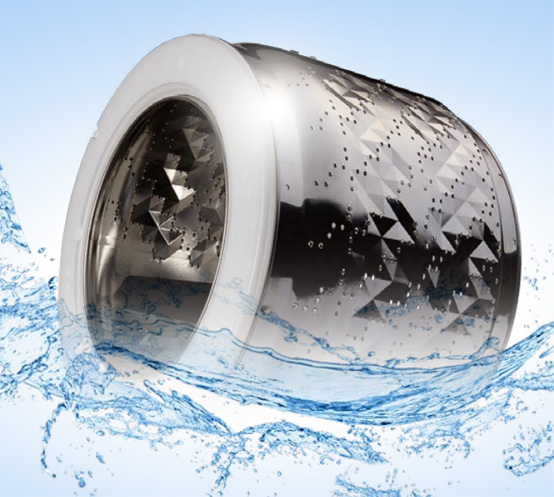

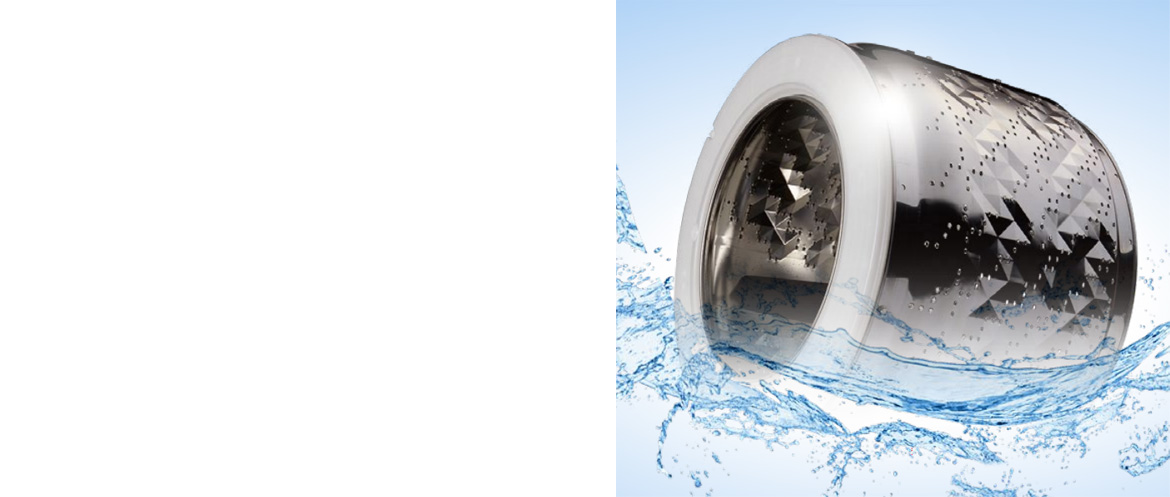

An Always Clean Drum

The Tub Clean Course uses hot water at about 40°C to eliminate detergent residue, dirt and bacteria causing odors.

*1 MODEL: NA-120VX7 / TESTING INSTITUTION: CHINA TESTING & INSPECTION INSTITUTE FOR HOUSEHOLD ELECTRIC APPLIANCES / TEST STANDARD: GB 21551.5-2010 (Antibacterial and cleaning function for household and similar electrical appliances – Particular requirements for electric washing machine) / TESTING CONDITION: Program "Cotton (cold water)+Ag+" / REPORT ISSUE DATE: 1st/Mar/2017/ REPORT REFERENCE NO.: WXq-17-30021 / Up to 3kg load.

*2 MODEL: NA-120VX7, 128VG7 / TESTING INSTITUTION: CHINA TESTING & INSPECTION INSTITUTE FOR HOUSEHOLD ELECTRIC APPLIANCES / TEST STANDARD: GB 21551.5-2010 / TESTING CONDITION: Program "Hygiene 90℃" (Clothes amount 3kg for NA-120VX7, 2.4kg for NA-128VG7) / REPORT REFERENCE NO.: WXq-17-30021 (for NA-120VX7), WXq-17-30022 (for NA-128VG7).

*3 MODEL: NA-120VX7, NA-128VG7 / TESTING INSTITUTION: Biostir, Inc. (Kobe Hyogo, Japan) *TEST METHOD: Internal test method (Inactivation of allergen) / TESTING CONDITION: Program "Hygiene 60℃" / REPORT REFERENCE NO.: 11-an-PNS-1,2 *Allergen removal rate: Purified antigen derived from mite up to 99%, Purified antigen derived from Japanese cedar pollen up to 99%.

*4Water temperature with Allergy-care is 60°C only.

*5 At half load. Active Speed course. The level of foaming depends on conditions such as load size, degree of soiling, detergent type, and water pressure. However, there is no change in washing performance.

*6 Model: NA-120VX7. Testing Institution: TUV Rheinland (Shanghai) Co. Ltd. Test Conditions: ECONAVI Program. Comparison made with ECONAVI 40℃ operation (laundry amount : 10.0kg / water temperature: less than 17℃) versus ECONAVI 40℃ operation (laundry amount : 1.5kg / water temperature: more than 35℃). Test conducted based on IEC 60456 with the exception of water temperature.

Specifications


ECONAVI Front Loading Washing Machine (10kg, 1200 rpm)
Living
Washing Machine
SeriesFront Loading Washer
Washing Capacity (kg)10
Drying Capacity (kg)-
Dimension (W x D x H) mm596 x 560 x 845
Washable No.of Dress / Shirt (pcs)-
Washing Program16
Water Temperature (°C)Cold 30 / 40 / 60 / 90
Water Consumption (Normal Course) (L)81L
Spin Speed (with Clothes) (rpm)500-1200
Tub MaterialStainless Steel
Super Cleaning Feature-
Auto Tub Cleaningv
Inverterv
Programmable Timerv
Child Lockv
LED Displayv
Drain Pumpv
Body ColorWhite
LCD Display-
LID Color-
Air dry course-
ECONAVIv
3D Sensorv
HydroActive + Shower-
Eco/Speed Modev
Stain Solutionv
Water Level
Water Level-
Quantity-
Range (L)-

FAQ

Why is there water residue inside the detergent case?

During the washing cycle, water will be injected into the detergent case, washing the detergent/softener down into the drum. It is normal for some water residue left in the detergent case.

Why is the remaining washing time constantly changing?

The displayed remaining time is estimated and corrected continually. It is just for reference and subject to change.

During spin-dry, why does the drum stop and rotate several times?

The appliance has detected that the load is not balanced and is trying to re-distribute the clothes inside the drum to correct it. It is normal. If the laundry is too light, the spin process may repeatedly start and stop. Please add one to two bath towels to increase the load.

How to remove the odor inside the drum?

It is recommended to keep the door open after each use, so as to air-dry the remaining moisture insdie the drum. If odor is found continuously, it is suggested to run "Tub Clean" programme with drum cleaning detergent at least once a month for smell reduction.

Why are the buttons not working?

While washing is in progress or the child lock is activated, the settings cannot be changed. If it is necessary to change the settings, please turn off the appliance, wait for about 10 seconds and turn on the appliance again to re-select the programme.

What is the lifespan of Ag ion device? Do I need to replace it?

The “Blue Ag+” works for about three years if used twice a week with normal water conditions (water hardness, water amount and temperature). You can still use the washing machine after the Ag+ part’s service life, but no longer sterilising effect. Please contact our service centre for replacement.

Can I adjust the time of clothes drying programme for washer dryer?

The default programme time cannot be changed. However, there are 4 different drying levels for selection. Customers could choose based on the desired drying time.

If there is only a small amount of laundry, "1H Wash & Dry" programme is recommended (Laundry capacity: 1 kg).

Can I stop the machine operation and open the door during the clothes drying cycle for washer dryer?

When the washer is under drying mode, doors can only be opened after cooling down due to product safety design. If the issue persists, please contact our service centre for further assistance.

Downloads

User Manual - Operating Instruction Product Catalogue - Product Catalogue
