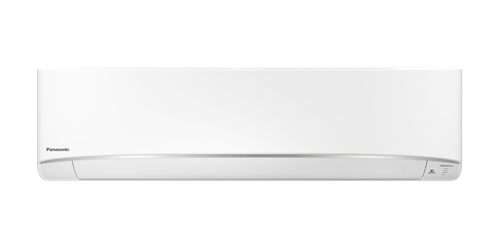

"Smaller" Series "Inverter" Split Type Heat Pump Air-Conditioner (Indoor Unit) (2 HP)
CS-LE18WKA
Suggested Retail Price HK$11,800
- 2 HP (Heat Pump Model - With Remote Control)
- Cooling Capacity : 18,100 Btu/h
- Heating Capacity : 15,400 Btu/h
- Grade 1 Energy Label
- 1 year warranty: Entire unit
- 5 years warranty: Compressor
- R410A Refrigerant
- Wifi function, supported with Panasonic Comfort Cloud App(Installation of WiFi Adapter CZ-TACG1 is required)
Reference for Cooling Capacity of Air Conditioner and Room Size
*Scaffolding may be required, depending on the installation environment.
Overview
nanoe® X is a patented ion technology developed by Panasonic. It is an electrostatic atomization technology that collects invisible moisture in the air and applies high voltage to it to produce "hydroxyl radicals contained in water". The decisive factor is the existence of hydroxyl radicals inside nanoe®X. Hydroxyl radicals are characterized by being strongly oxidative and highly reactive to inhibit a wide variety of air-pollutants, associated with the effect of skin and hair motorization, which provides the best quality of air to your family.
7 Effects
The negatively charged nanoe-G adheres with PM2.5, inhibit up to 99% PM2.5*1,bacteria and viruses(e.g., staphylococcus aureus*2, influenza [H1N1]*2, Escherichia coil phage*2)
nanoe-G ion generator releases negative ions.
Negative ions attach to dust particles.
The pollutants are being taken to the filter
*1FCG Research Institute lnc Test result *2Kitasato Research Center for Environmental Science test result
What is PM2.5?
PM 2.5 is know as particulate matter with size of less than 2.5 micrometers, which is one of the product of fossil fuel combustion. It is said to pose health problem as it can easily enter human lungs as it is smaller than bacteria.
【Panasonic Inverter Air Cond.】Smart & Cool
【Anti-epidemic New Life of Panasonic nanoe™X Air Cond.】
【How to install Panasonic Comfort Cloud Wifi Adapter?】
Specifications
"Smaller" Series "Inverter" Split Type Heat Pump Air-Conditioner (Indoor Unit) (2 HP) | ||
|---|---|---|
| Living | ||
| Air-Conditioner | ||
| Outdoor | CU-LE18WKA | |
| Inverter | ● | |
| Aerowings Feature Twin Flaps | ● | |
| Remote Control | ● | |
| Air-purifying System | nanoeX+nanoe-G | |
| Cooling Capacity | ||
| Btu/h | Indoor Unit：18,100，Outdoor Unit：3,340-18,800 | |
| kW | Indoor Unit：5.31，Outdoor Unit：0.98-5.50 | |
| Heating Capacity | ||
| Btu/h | Indoor Unit：15,400，Outdoor Unit：3,340-16,400 | |
| kW | Indoor Unit：4.51，Outdoor Unit：0.98-4.80 | |
| EER | ||
| W/W | Cooling Capacity：2.72 / Heating Capacity：2.91 | |
| Seasonal Performance Factor | ||
| Cooling Seasonal Performance Factor (CSPF) | 5.0597 | |
| Heating Seasonal Performance Factor (HSPF) | 4.4519 | |
| Power Supply | ||
| Voltage V | 220 | |
| Power Consumption A | Cooling Capacity：9.0 / Heating Capacity：7.2 | |
| Input Power kW | Cooling Capacity(Indoor Unit)：1.95，(Outdoor Unit)：0.27-2.15 / Heating Capacity(Indoor Unit)：1.55，(Outdoor Unit)：0.27-1.67 | |
| Power Plug | 3-round-pin 15A plug | |
| Moisture Removal | ||
| L/h | 2.9 | |
| Pt/h | 6.1 | |
| Air Circulation(Indoor / Hi) | ||
| m³/min. | Cooling Capacity：18.6 / Heating Capacity：18.2 | |
| ft³/min. | Cooling Capacity：655 / Heating Capacity：640 | |
| Indoor Unit Dimension(H x W x D) | ||
| mm | 302 x 1102 x 244 | |
| inch | 11 29/32" x 43 13/32" x 9 5/8" | |
| Outdoor Unit Dimension(H x W x D) | ||
| mm | 420 x 765 x 289 | |
| inch | 16 9/16" x 30 1/8" x 11 13/32" | |
| The protruding pipes are excluded. For details, please download the file named “Dimension” in the section “Support”. | ||
| Net Weight | ||
| Indoor Unit | 13 kg，29 lb | |
| Outdoor | 30 kg，66 lb | |
| Piping Diameter | ||
| Liquid mm / inch | ψ6.35 / 1/4" | |
| Gas mm / inch | ψ12.70 / 1/2" | |
| Power Supply | Indoor | |
| Pipe Length Range | ||
| m | 20 (Max) | |
| ft | 65.6 (Max) | |
