Flagship Model - Wi-Fi A.I. Inverter Split Type Heat Pump Air-Conditioner (2.5HP)

CS-Z24ZKA

Product | Accessories

Suggested Retail Price HK$29,800

  • Product Main Features and Advantages

    • Equppied with nanoe®X Mark 3 Air Purifying System (Read more)
    • Inhibiting 99.99% SARS-CoV-2 (Read more)
    • Wi-Fi Function, Supported with Panasonic Comfort Cloud App** (Read More).
    • Environmental Friendly R32 Refrigerant

  • Product Specification

    • 2.5 HP (Heatpump Model - With Remote Control)
    • Cooling Capacity: 21,800Btu/h
    • Heating Capacity: 27,300Btu/h
    • Grade 1 Energy Label

  • Warranty

    • 1 year warranty: Entire unit

    • 5 years warranty: Compressor

    • Complimentary 1 year of Scaffolding Supporting Plan (Read More), starting from the purchase date of 1/7/2024 - 31/3/2025.

  • Installation Reference

    Reference for Cooling Capacity of Air Conditioner and Room Size

    *Scaffolding may be required, depending on the installation environment.

**Currently only available in Hong Kong

nanoe® X is a patented ion technology developed by Panasonic. It is an electrostatic atomization technology that collects invisible moisture in the air and applies high voltage to it to produce "hydroxyl radicals contained in water". The decisive factor is the existence of hydroxyl radicals inside nanoe®X. Hydroxyl radicals are characterized by being strongly oxidative and highly reactive to inhibit a wide variety of air-pollutants, associated with the effect of skin and hair motorization, which provides the best quality of air to your family.

7 Effects

Snow

The negatively charged nanoe-G adheres with PM2.5, inhibit up to 99% PM2.5*1,bacteria and viruses(e.g., staphylococcus aureus*2, influenza [H1N1]*2, Escherichia coil phage*2)

Snow

nanoe-G ion generator releases negative ions.

Snow

Negative ions attach to dust particles.

Snow

The pollutants are being taken to the filter

*1FCG Research Institute lnc Test result *2Kitasato Research Center for Environmental Science test result

Snow

What is PM2.5?

PM 2.5 is know as particulate matter with size of less than 2.5 micrometers, which is one of the product of fossil fuel combustion. It is said to pose health problem as it can easily enter human lungs as it is smaller than bacteria.

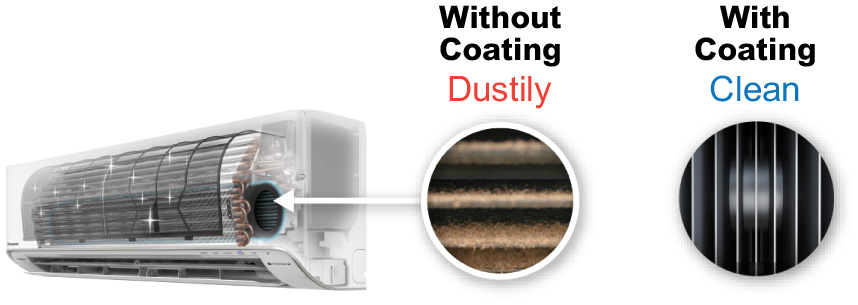

Japan SIAA Anti-static / Fungus Coating Snow

Snow

It can prevent the fan from generating static electricity due to high-speed rotation, reduce dust or mold from adhering to the cross-flow fan, create a clean environment.

Snow Intelligent, dynamic cooling with humidity control

Snow
Snow

According to research, the human body feels most comfortable when indoor temperature is at its optimal level and relative humidity is below 60%.

iAutoX will first lower the room temperature, and use its built-in humidity sensor to control the humidity, creating a comfortable zone for user.

Snow
Snow

Intelligently Balances Energy Savings and Comfort

As each room in your home is different, ECO Mode Artificial Intelligence (A.I.) Control efficiently cools your room based on the amount of heat load and air conditioning capacity. It finds the perfect ECO balance between power consumption and time taken to reach the desired temperature to maintain your comfort with minimal energy waste.

ECO Mode with A.I. Control will automatically learn and judge what is the optimal ECO level based on:


1 Room Condition

2 Heat Source can be due to:

[A] Sunlight and lighting in the room
[B] Computers and appliances
[C] Body heat


When Your Air Conditioner is Switched on

Snow

Requires Fast Cooling

ECO Mode with A.I. Prioritises on maximising cooling comfort while saving energy through ECO Mode.

Snow

Does not require Fast Cooling

ECO Mode with A.I. prioritises on maximising energy savings over cooling comfort.


After Reaching Set Temperature

Snow

Consistent comfort day or night.
Saves energy after reaching set temperature.

ECO Mode with A.I. continues to save energy and automatically adjusts room temperature for consistent cooling comfort

Snow
Snow

*Comparison of ECO Mode & normal mode by using 1.5HP Inverter Model


Total power consumption amount is measured for 1 hour under stable operation. At Panasonic Amenity Room (size : 13.3 m2)

The effect differs according to conditions in installation and usage

*.Applicable for models with ECO+A.I. function only

【Anti-epidemic New Life of Panasonic nanoe™X Air Cond.】

【How to connect Panasonic Comfort Cloud ( Built-in Wifi)】


Flagship Model - Wi-Fi A.I. Inverter Split Type Heat Pump Air-Conditioner (2.5HP)
Living
Air-Conditioner
Air-ConditionerCS-Z24ZKA
OutdoorCU-Z24ZKA
Inverter
Aerowings Feature Twin Flaps
Remote Control
Air-purifying System nanoeX Mark 3+nanoe-G
Cooling Capacity
Btu/h21,800
kW6.40
Heating Capacity
Btu/h27,300
kW8.00
EER
W/W3.50
Seasonal Performance Factor
Cooling Seasonal Performance Factor (CSPF)6.11
Heating Seasonal Performance Factor (HSPF)5.39
Power Supply
Voltage V220
Power Consumption ACooling Capacity:8.50;Heating Capacity:9.60
Input Power kWCooling Capacity: 1.83 Heating Capacity: 2.05
Moisture Removal
L/h3.6
Pt/h7.6
Air Circulation(Indoor / Hi)
m³/min.Cooling Capacity:21.7;Heating Capacity:21.7
ft³/min.Cooling Capacity:765;Heating Capacity:765
Indoor Unit Dimension(H x W x D)
mm295 X 1040 X 244
Outdoor Unit Dimension(H x W x D)
mm695 x 875 x 320
The protruding pipes are excluded. For details, please download the file named “Dimension” in the section “Support”.
Net Weight
Indoor Unit14 kg
Outdoor44 kg
Piping Diameter
Liquid mm / inchψ6.35 / 1/4"
Gas mm / inchψ15.88 / 5/8"
Power SupplyIndoor
Pipe Length Range
m3-30
ft9.8-98.4
