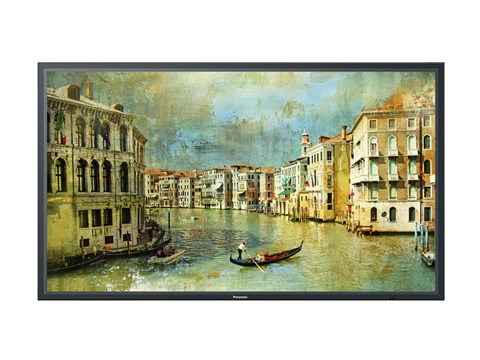

TH-98SQ1

98" Class 4K UHD LCD Display

Highlights

  • 4K Ultra HD 98”
  • Ultra HD resolution 3,840 x 2,160
  • High expandability with ultra-slim Intel® Smart Display Module (Intel SDM)

Features

  • Multi HDR Support for creating light and dark images with fine details in rich colour to give life to images
  • Long displaying time - 24/7 operation
  • Flexible in deposition – portrait / landscape
  • 4K USB Media Player – easy to access the content without connecting external devices and updates are allowed via LAN
  • 4K DIGITAL LINK
  • DisplayPort Connection for daisy-chain signage
  • Multiple screen function (quad, PinP, PbyP)
  • Product specification:
    http://www.shet.com.hk/Projects/en/products/projectproducts/display-panels/th-98sq1.aspx

Specifications


98" Class 4K UHD LCD Display
Professional Display Panels
Display Panel
Screen Size (Diagonal)98-inch class (2477mm/97.5 inch)
Aspect Ratio16:9
Panel TypeIPS Panel/D-LED
Effective Display Area (W x H)2158.8 x 1214.3 mm (84.9" x 47.8")
Resolution3840 x 2160 pixels
Brightness (Typ)500 cd/m2
Contrast Ratio1300:1
Dynamic Contrast Ratio50000 : 1
Response Time (G to G)8 ms (G to G)
Viewing Angle (Horizontal/Vertical)178° / 178°(CR ≧ 10)
Panel Surface TreatmentAnti-Glare (Haze 28%)
Terminal
HDMI InHDMI Type A Connector x 2 (Compatible with HDCP 2.2)
Audio: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz)
Audio In (L/R)Stereo Mini Jack (M3) x 2 0.5V[rms]
DVI-D InDVI-D 24-pin x 1 Compliance with DVI Revision 1.0 Compatible with HDCP 1.1
DisplayPort InDisplay Port x 1
(Compatible with HDCP 2.2)
Audio: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz)
PC InMini D-Sub 15-pin (DDC2B) x 1
Serial In/OutD-sub 9-pin x 1, RS-232C Compatible
LAN In/OutRJ45 x 1, compatible with PJLinkTM
RJ45 10BASE-T/100BASE-TX
IR InStereo Mini Jack (M3) x1/x1
IR OutStereo Mini Jack (M3) x1/x1
Audio Out (L/R)Stereo Mini Jack (M3) x 1 0.5V [rms]
USBUSB Connector (Type A) x 2, DC 5V/2A,
DC 5V/1A (USB 3.0 is supported)
Function SlotIntel® SDM specification
Corresponding size SDM-S / SDM-L, Supply power 12V / 5.5A, 3.3V/ 1.1A
DIGITAL LINKRJ45 x 1, 100BASE-TX, compatible with Long reach mode
Audio
Built in Speakers20 W [10W + 10W]
Electrical
Power RequirementsAC 110-127V 50Hz/60Hz, 220-240V 50Hz/60Hz
Power Consumption685 W
On Mode Average Power Consumption599 W*1
Power Off ConditionApprox. 0.3 W
Stand-by ConditionApprox. 0.5 W
General
Dimensions (W x H x D) (mm)Including Handles: 2194 x 1249 x 90 mm (86.35" x 49.15" x 3.54")
Not Including Handles: 2194 x 1249 x 81 mm (86.35" x 49.15" x 3.17")
Weight (kg)90 kg (198.5 lbs.)
Carton Size (W x H x D) (mm)2513 x 1704 x 450 mm
(98.94" x 67.09" x 17.72")
Gross Weight (kg)138 kg (304.3 lbs.)
Protective Glass-
Bezel WidthT/B/L/R 16.0 mm (0.63")
Bezel to Bezel-
Cabinet Material / ColorBlack
Pitch for Wall-HangingVESA Compliant W800 x H500 mm (W31.5" x H19.7")
(Installed by: M8 screws/Screw hole depth 13mm (0.5"))
OrientationLandscape / Portrait*2
Tilting AngleLandscape: 0-20 degrees forward/backward
Portrait: 0-20 degrees forward/backward*3
Operating EnvironmentTemperature: 0℃ to 40℃ (32℉ to 104℉)*4: 0℃ to 35℃ (32℉ to 95℉)*5
Humidity: 20% to 80% (Non Condensation)/ Attitude: 0-2800 m (0 to 9186 ft)
Storage EnvironmentTemperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)/
Humidity: 20% to 80% (Non Condensation)
Certification
IP Rating-
Safety RegulationsUL60950-1, 2nd Edition, 2014-10-14
CSA C22.2 No. 60950-1-07,
2nd Edition, 2014-10
Mexico: UL Certificate of Compliance
(UL Mexico issue)
EU:EN60950-1:2006+A11:2009
+A1:2010+A12:2011+A2:2013
BEAB approval IEC60950-1
AS/NZS Deviation
Radiation RegulationsFCC 47 CFR, Part 15, Subpart B Class A
ANSI C63.4-2014 ICES-003
EN55032:2012+AC:2013 (CLASS A),
EN55035
EN55024:2010, EN61000-3-2:2014,
EN61000-3-3:2013
IEC61000-4-2:2008, IEC61000-4-3:2010,
IEC61000-4-4:2012
IEC61000-4-5:2005, IEC61000-4-6:2013,
IEC61000-4-8:2009
IEC61000-4-11:2004
AS/NZS CISPR32:2013
RCM Mark

*1: Based on IEC 62087 Ed.2 measurement method

*2: When installing the Display vertically, be sure that the Power Indicator comes to the upper side

*3: Please contact your sales representative with regard to the tilt angle before installation.

*4: for up to 1400 m (4593 ft) altitude

*5: for between 1400 m (4593 ft) and 2800 m (9186 ft) altitude. Depending on the temperature or humidity conditions, uneven brightness may be observed. This is not a malfunction. This unevenness will disappear while applying current continuously. If not, consult the distributor.
