Wi-Fi Inverter Window-Split Type Heat Pump Air-Conditioner (1 1/2HP)

CS-HZ12BWA

Product | Accessories

Suggested Retail Price HK$13,800

  • Product Main Features and Advantages
    • Equipped with nanoe®X Mark 3 Air Purifying System (Read more)
      • Effectively inhibits 99.99% of bacteria and viruses (learn more)
      • Effectively inhibits Allergens
        • Approved by Sensitive Choice, which helps consumers worldwide live better with asthma and allergies
        • Certified by German VDI 6022 for Allergy friendly
    • Triple Air Purifying Technology
      • Self-Cleaning**:When the unit is turned on, Indoor Unit will remove dust on the heat exchanger by frosting and melting
      • nanoe®X: During unit's operation, the air purification system will help to improve indoor air quality
      • Anti-Mildew: During anti-mildew operation, the front panel closes, nanoe® will be turned on and horizontal vane opens.
    • Anti-Mold Monitoring
    • Wi-Fi function, supported with Panasonic Comfort Cloud App*** (Read More)
    • "Inverter" adjusts output power finely to maintain a constant temperature and conserve energy
    • Environmental Friendly R32 Refrigerant
  • Product Specification
    • 1 1/2HP (Heat pump Model)
    • 12,015 Btu/h
    • Grade 1 Energy Label
  • Warranty
    • 1 year warranty: Entire unit
    • 5 years warranty: Compressor
    • Complimentary 1 year of Scaffolding Supporting Plan (Read More), starting from the purchase date of 1/7/2024 - 30/9/2025.

*Scaffolding may be required, depending on the installation environment.

**Self-Cleaning Function is for ensuring the cleanness of the heat exchanger, but not cleaning the filter.

***Currently only available in Hong Kong

Overview

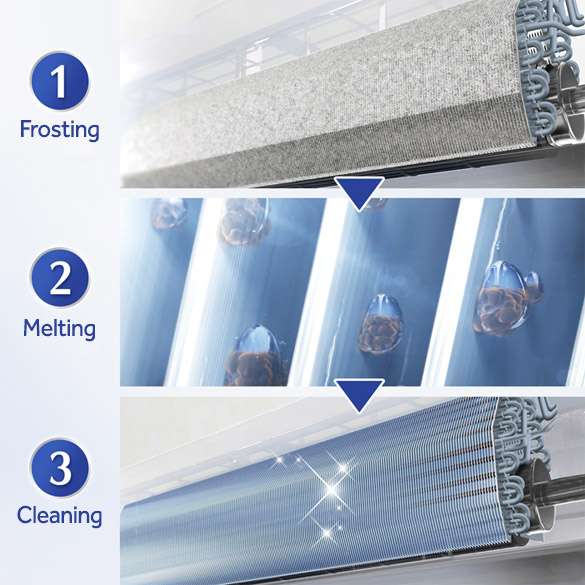

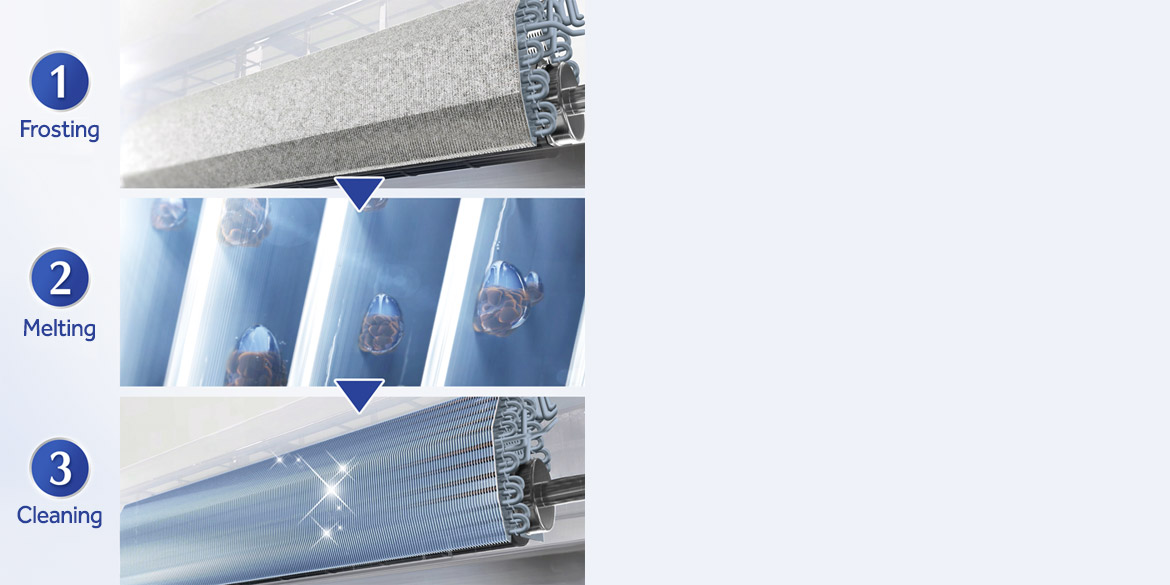

Self-Cleaning

Snow

  1. Frosting: Frost the heat exchanger

  2. Melting: Melt the dirt with the frost

  3. Cleaning: Clean the heat exchanger by removing dust

nanoe® X is a patented ion technology developed by Panasonic. It is an electrostatic atomization technology that collects invisible moisture in the air and applies high voltage to it to produce "hydroxyl radicals contained in water". The decisive factor is the existence of hydroxyl radicals inside nanoe®X. Hydroxyl radicals are characterized by being strongly oxidative and highly reactive to inhibit a wide variety of air-pollutants, associated with the effect of skin and hair motorization, which provides the best quality of air to your family.

7 Effects

Bacteria & Viruses

Moulds

Allergens

Pollens

PM 2.5

Moisturisation

Pesticide residue
Snow

The negatively charged nanoe-G adheres with PM2.5, inhibit up to 99% PM2.5*1,bacteria and viruses(e.g., staphylococcus aureus*2, influenza [H1N1]*2, Escherichia coil phage*2)

Snow

nanoe-G ion generator releases negative ions.

Snow

Negative ions attach to dust particles.

Snow

The pollutants are being taken to the filter

*1FCG Research Institute lnc Test result *2Kitasato Research Center for Environmental Science test result

Snow

What is PM2.5?

PM 2.5 is know as particulate matter with size of less than 2.5 micrometers, which is one of the product of fossil fuel combustion. It is said to pose health problem as it can easily enter human lungs as it is smaller than bacteria.

Anti-Mildew Operation

Snow

During anti-mildew operation, the front panel closes, nanoe® will be turned on and horizontal vane opens.

*2 Kitasato Research Center for Environmental Science test result

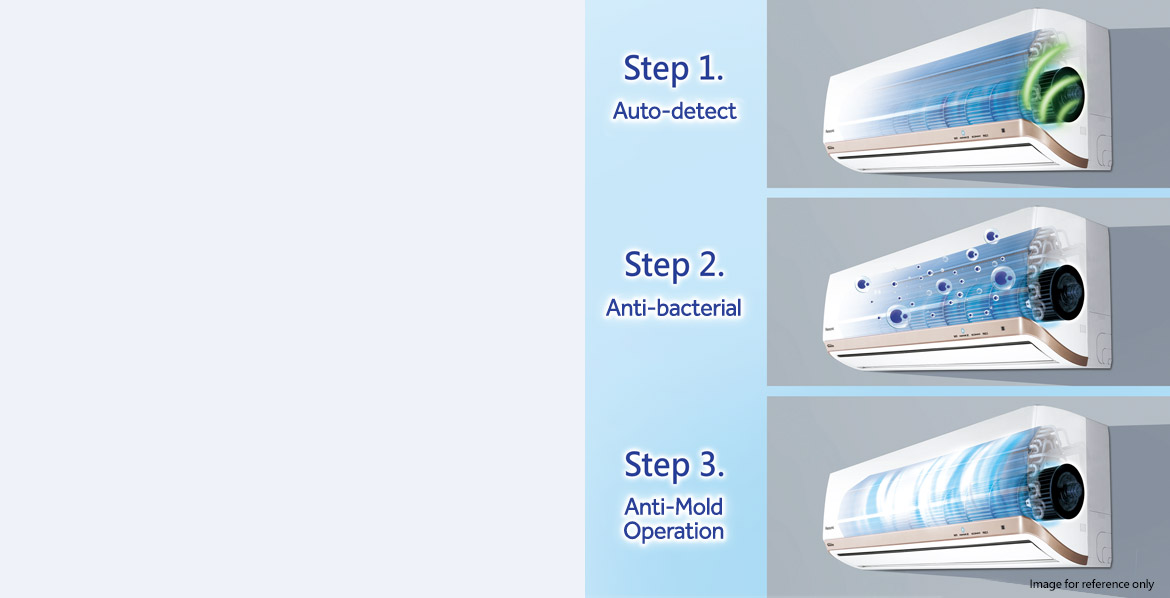

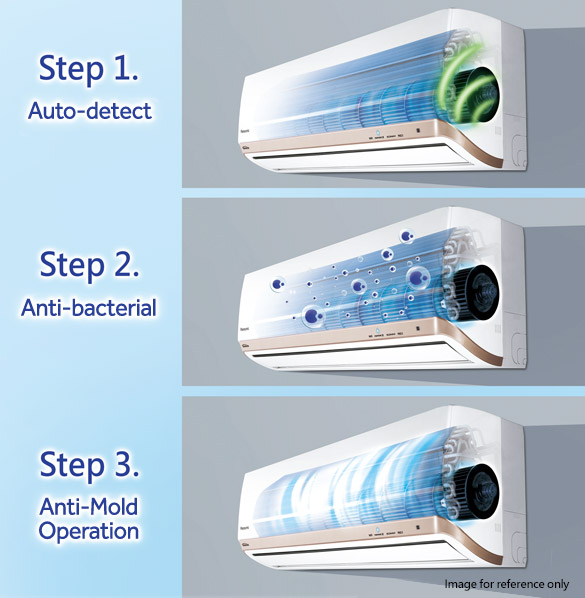

Anti-Mold Monitoring

Snow

This function monitors the temperature and humidity of the environment all day long when the air conditioner is in standby mode. The Anti-Mold Monitoring will be able to keep the inside of the air conditioner dry and prevent mold.

Snow

  1. Auto-detect: When the temperature around the air conditioner is detected to be above 10℃ and the humidity is above 60% for 12 hours, the anti-mold process will be activated.

  2. Anti-bacterial: During the anti-mold process, nanoe® will be released to proactively inhibits mold growth.

  3. Anti-Mold Operation: While the anti-mold is in operation, the vertical airflow louvers and the front panel will remain closed. A low level of airflow will be emitted, and the nanoe® function will operate simultaneously.

Specifications


Wi-Fi Inverter Window-Split Type Heat Pump Air-Conditioner (1 1/2HP)
CS-HZ12BWA
Living
Air-Conditioner
OutdoorCU-HZ12BWA
Inverter●
Remote Control●
Air-purifying System nanoeX Mark 3+nanoe-G
Cooling Capacity
Btu/h12,015
kW3.52
Heating Capacity
Btu/h12,015
kW3.52
EER
W/W3.43
Seasonal Performance Factor
Cooling Seasonal Performance Factor (CSPF)5.511
Heating Seasonal Performance Factor (HSPF)5.024
Power Supply
Voltage V220
Power Consumption ACooling Capacity：5.5; Heating Capacity: 5.3
Input Power kWCooling Capacity：1.025;Heating Capacity:1.041
Power Plug3-round-pin 15A plug
Moisture Removal
L/h2.0
Air Circulation(Indoor / Hi)
m³/min.11.3
Indoor Unit Dimension(H x W x D)
mm315 x 820 x 245
Outdoor Unit Dimension(H x W x D)
mm385 x 548 x 471
Net Weight
Indoor Unit12 kg
Outdoor25 kg
Piping Diameter
Liquid mm / inchψ6.35 / 1/4"
Gas mm / inchψ9.52 / 3/8"
Power SupplyIndoor

Wi-Fi Inverter Window-Split Type Heat Pump Air-Conditioner (1 1/2HP)
CS-HZ12BWA
Living
Air-Conditioner
OutdoorCU-HZ12BWA
Inverter●
Remote Control●
Air-purifying System nanoeX Mark 3+nanoe-G
Cooling Capacity
Btu/h12,015
kW3.52
Heating Capacity
Btu/h12,015
kW3.52
EER
W/W3.43
Seasonal Performance Factor
Cooling Seasonal Performance Factor (CSPF)5.511
Heating Seasonal Performance Factor (HSPF)5.024
Power Supply
Voltage V220
Power Consumption ACooling Capacity：5.5; Heating Capacity: 5.3
Input Power kWCooling Capacity：1.025;Heating Capacity:1.041
Power Plug3-round-pin 15A plug
Moisture Removal
L/h2.0
Air Circulation(Indoor / Hi)
m³/min.11.3
Indoor Unit Dimension(H x W x D)
mm315 x 820 x 245
Outdoor Unit Dimension(H x W x D)
mm385 x 548 x 471
Net Weight
Indoor Unit12 kg
Outdoor25 kg
Piping Diameter
Liquid mm / inchψ6.35 / 1/4"
Gas mm / inchψ9.52 / 3/8"
Power SupplyIndoor
