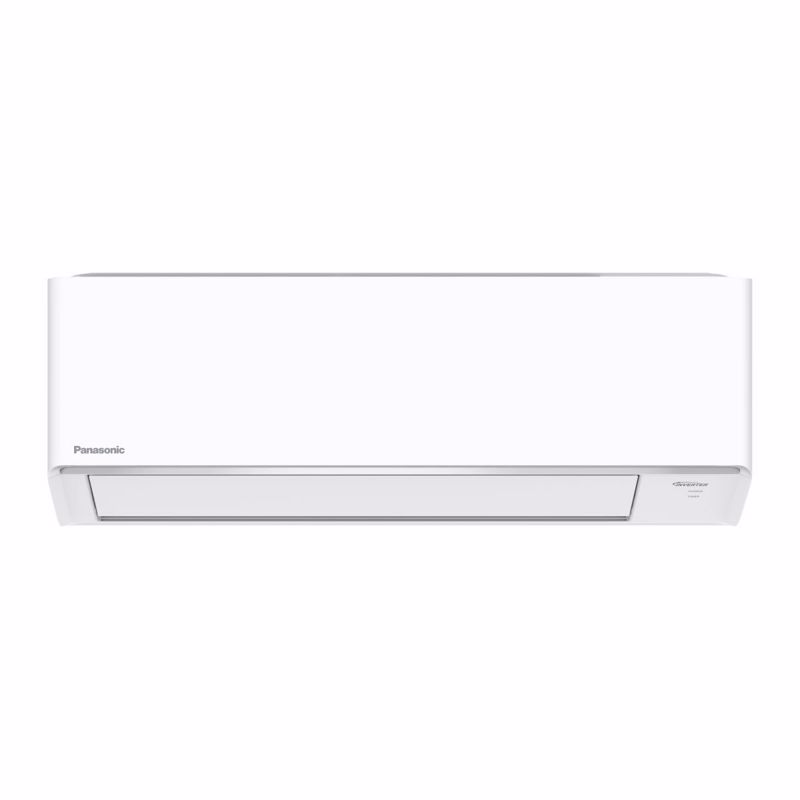

變頻淨冷分體式空調機 (1.5 匹) CS-YU12BKA

建議零售價 HK$8,380

1.5 匹 (淨冷系列)
11,900 Btu/h
1 級能源標籤

分類

家居生活換氣及空調設備分體式空調機

產品概覽

產品概覽

1.5 匹 (淨冷系列)
11,900 Btu/h
1 級能源標籤

功能

功能

PM2.5 過濾網
Wi-Fi 功能，支援 Panasonic Comfort Cloud 應用程式* (需安裝配接器 CZ-TACG1)
「變頻式」操作，有效調節至舒適溫度及節省耗電量
BIG FLAP 導風板設計
採用 R32 環保雪種，保護環境
防銹藍鑽保護層散熱器

規格


		CS-YU12BKA
空調機	變頻式	●
	AEROWINGS 導風板設計	●
	無線遙控	●
電力資料	伏特 V	220
	耗電量 A	製冷： 4.60
	電量輸入 kW	製冷：0.980
	電源插頭	15A三圓腳插頭
製冷效能	Btu/h	11,900
製冷效能	kW	3.50
空氣流量 - 室內/高	m³/min.	製冷：11.2
空氣流量 - 室內/高	ft³/min.	製冷：395
季節性表現系數	製冷季節性表現系數	6.077
抽濕作用	L/h	2.0
抽濕作用	Pt/h	4.2
室內機體積 (高 x 闊 x 深)	毫米	290 x 765 x 214
室外機體積 (高 x 闊 x 深)	毫米	542 x 780 x 289
淨重	室內機	9公斤
淨重	室外機	22公斤
配管管徑	液體側 mm / inch	6.35 / 1/4”
	氣體側 mm / inch	9.52 / 3/8”
	供電來源	室內機
配管長度	米	3 ~ 20
配管長度	呎	9.8 ~ 65.6
冷凍效益	W/W	3.57
