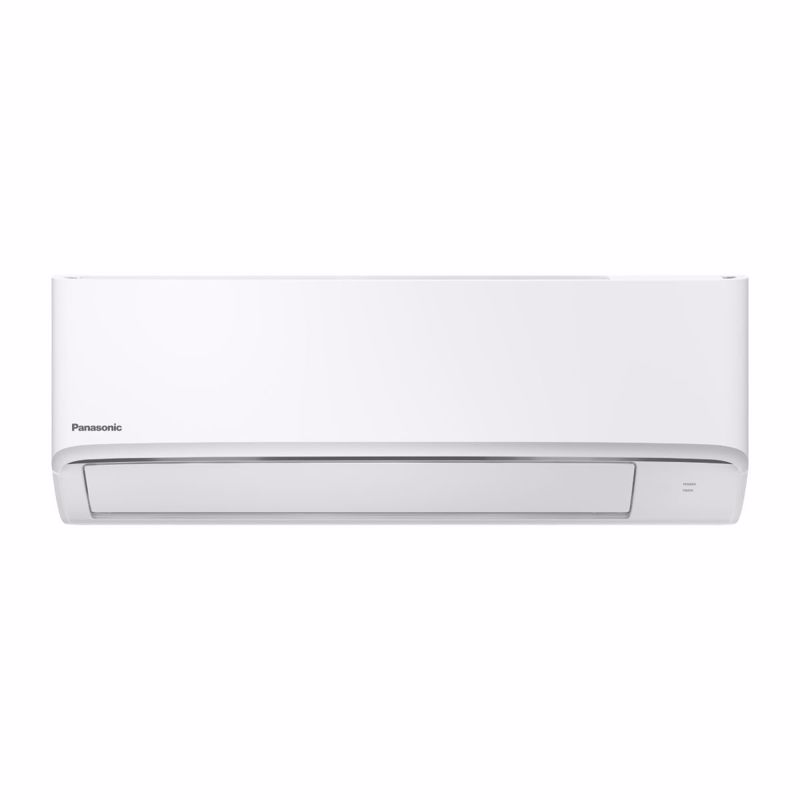

分體式空調機 (1.5 匹) CS-PN12ZKA

建議零售價 HK$7,580

1.5 匹（淨冷系列）
12,000 Btu/h
3 級能源標籤

分類

家居生活換氣及空調設備分體式空調機

產品概覽

產品概覽

1.5 匹（淨冷系列）
12,000 Btu/h
3 級能源標籤

功能

功能

採用 R32 環保雪種，保護環境
防銹藍鑽保護層散熱器
電源插頭：15A 三圓腳插頭
室內機體積(高 x 闊 x 深)：290 x 779 x 209 毫米
室外機體積(高 x 闊 x 深)：542 x 780 x 289 毫米

規格


		CS-PN12ZKA
空調機	無線遙控	●
電力資料	伏特 V	220
	耗電量 A	製冷： 4.80
	電量輸入 kW	製冷（室內機）：1.040
	電源插頭	15A三圓腳插頭
製冷效能	Btu/h	12,000
製冷效能	kW	3.52
空氣流量 - 室內/高	m³/min.	製冷：11.5
空氣流量 - 室內/高	ft³/min.	製冷：406
季節性表現系數	製冷季節性表現系數	3.385
抽濕作用	L/h	2.0
抽濕作用	Pt/h	4.2
室內機體積 (高 x 闊 x 深)	毫米	290 x 779 x 209
室外機體積 (高 x 闊 x 深)	毫米	542 x 780 x 289
淨重	室內機	9公斤
淨重	室外機	21公斤
配管管徑	液體側 mm / inch	6.35 / 1/4”
	氣體側 mm / inch	9.52 / 3/8”
	供電來源	室內機
配管長度	米	3 ~ 20
配管長度	呎	9.8 ~ 65.6
冷凍效益	W/W	3.31

支援服務

客戶服務熱線: 2833 0955 查詢表格

下載分體式空調機目錄 2026 分體式空調機功能表 2026 使用說明書尺寸
