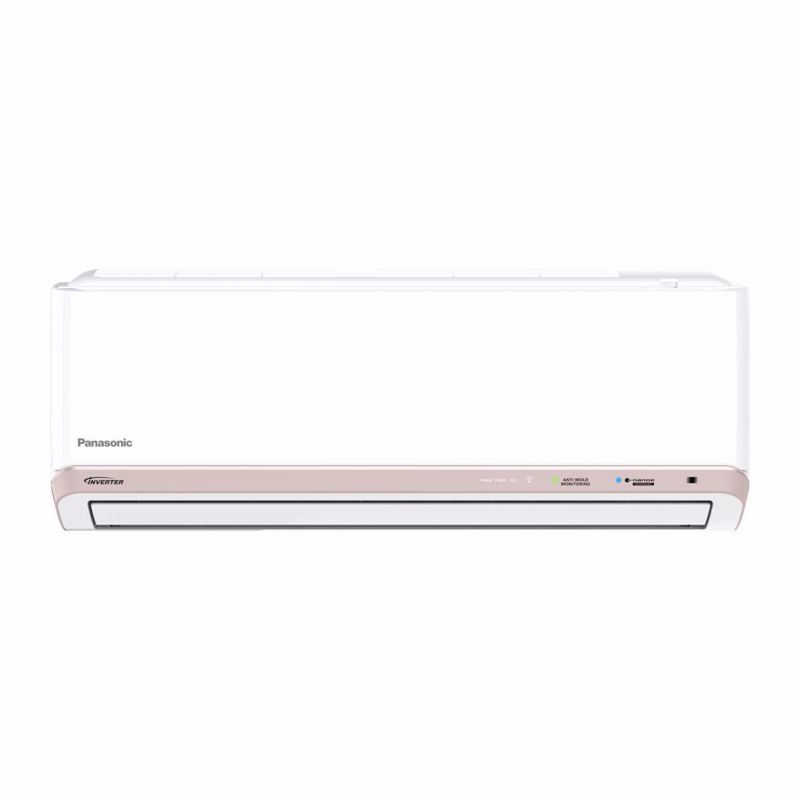

Wi-Fi Inverter Window-Split Type Heat Pump Air-Conditioner (1 HP) CS-HZ9BWA

Suggested Retail Price HK$10,800

1 HP (Heat pump Model)
9,045 Btu/h
Grade 1 Energy Label

Category

Living Ventilation & Air Conditioning Window Split Air-Conditioner

Overview

Overview

1 HP (Heat pump Model)
9,045 Btu/h
Grade 1 Energy Label

Functions

Functions

Equipped with nanoe® X Mark 3 Air Purifying System
- Effectively inhibits 99.99% of bacteria and viruses
- Effectively inhibits Allergens
  - Approved by Sensitive Choice, which helps consumers worldwide live better with asthma and allergies
  - Certified by German VDI 6022 for Allergy friendly
Triple Air Purifying Technology
Self-Cleaning*:When the unit is turned on, Indoor Unit will remove dust on the heat exchanger by frosting and melting
nanoe®X: During unit's operation, the air purification system will help to improve indoor air quality
Anti-Mildew: During anti-mildew operation, the front panel closes, nanoe® will be turned on and horizontal vane opens.
Anti-Mold Monitoring
Wi-Fi function, supported with Panasonic Comfort Cloud App
"Inverter" adjusts output power finely to maintain a constant temperature and conserve energy
Environmental Friendly R32 Refrigerant

*Self-Cleaning Function is for ensuring the cleanness of the heat exchanger, but not cleaning the filter.

Specifications


		CS-HZ9BWA
Air-Conditioner	Inverter	●
	Remote Control	●
	Air-purifying System	nanoe® X Mark 3
Seasonal Performance Factor	Cooling Seasonal Performance Factor (CSPF)	5.535
Seasonal Performance Factor	Heating Seasonal Performance Factor (HSPF)	4.470
Moisture Removal	L/h	1.5
Air Circulation (Indoor / Hi)	m³/min.	Indoor: 9.9 Outdoor: 12
Cooling Capacity	Btu/h	9,100
Cooling Capacity	kW	2.65
Heating Capacity	Btu/h	9,100
Heating Capacity	kW	2.65
Power Supply	Voltage V	220
	Power Consumption A	Cooling: 3.9 Heating: 4.55
	Input Power kW	Cooling: 0.780 Heating: 0.900
	Power Plug	3-round-pin 15A plug
Dimension (H x W x D)	mm	Indoor ：315 x 820 x 245 Outdoor ：348 x 443 x 373
Dimension (H x W x D)	Net Weight	Indoor : 12kg Outdoor : 21kg
